Hydraulic Pump,Double Acting 12V DC 15 Quart Hydraulic Power Unit

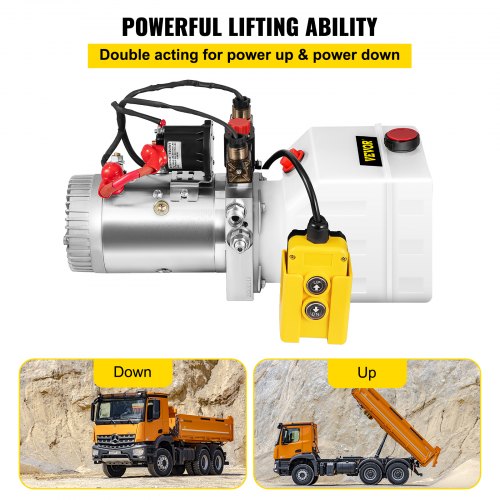

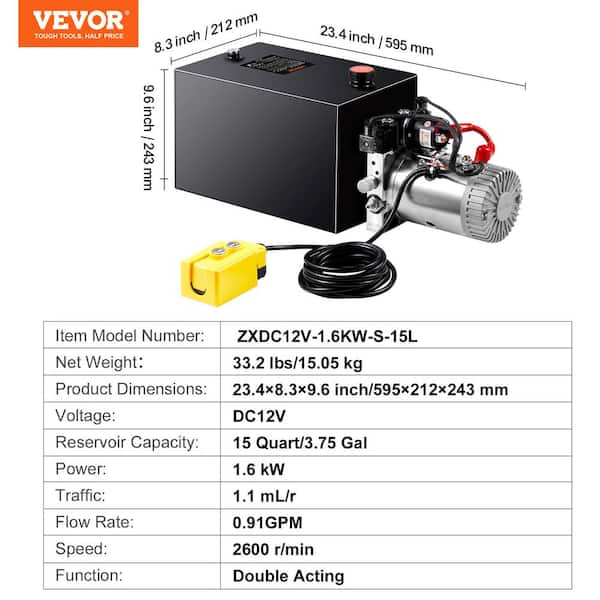

Set of Gaskets & Screws x 1 SAE # 6 Port, Horizontal mount Power Up & Power Down Comes With Wired Remote Industry Standard Pump Used for Dump Trailers, Dump Trucks, Lift Gates , Hydraulic Tilt Trailers Premium Quality -- 15 Quart Steel Reservoir; 12 Volt Motor D.C. ; 2 GPM Flow Rate; Rated speed: 2850 r/min; SAE # 6 Port; 1.6KW-3.0KW Motor power; Relief Valve Pressure: 22 MPA, Max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; Lift 3-5 Tons. The 2 positions/2 way cartridge has an internal piloted check valve to prevent internal bypass to maintain constant pressure. This circuit design also utilize a cartridge check and adjustable relief valve on the main and B port. It is the perfect replacement pump for 12V DC remotely controlled hydraulic systems. Remote Control -- The magnetic two button remote control comes with a bracket and 15 feet of cable with a quick connect at the motor. This hydraulic electric pump has a powerful motor with quick start and quick to output oil; it can provide powerful power for hydraulic systems such as dump trailers and dump trucks, and can finish lifting in a short time. Hand Held Pendant With About 15 Foot ( 4.5m) Removal Cord And Start Solenoid; SAE # 6 Port, Horizontal Mount It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
